Setup SSO with Microsoft Active Directory

This guide walks through enabling single sign-on (SSO), so your organization can access the emnify Portal using your Microsoft Business credentials.

Prerequisites:

  • An Azure Subscription with an Active Directory license
  • An emnify account using the same email address as the one used to sign in to Microsoft Azure
caution

If your email address used in the emnify Portal differs from the one used to log in to Azure, this setup won't work. You can verify your email in User Settings.

Instead, add an additional user with the Administrator role. To do this, go to Organization Settings > Employees.

SSO with Microsoft​

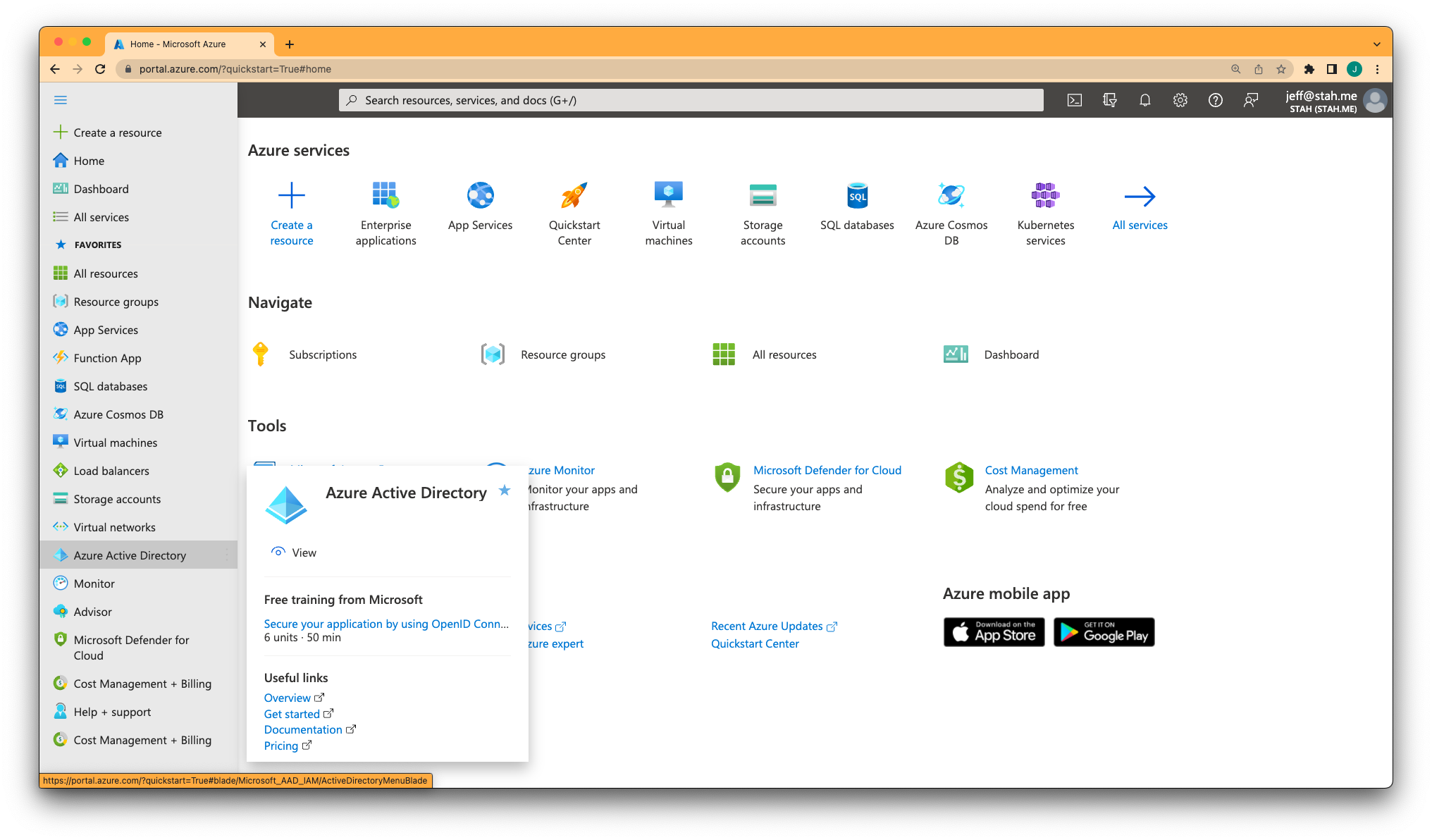

Log in to Azure and navigate to Azure Active Directory in the left sidebar.

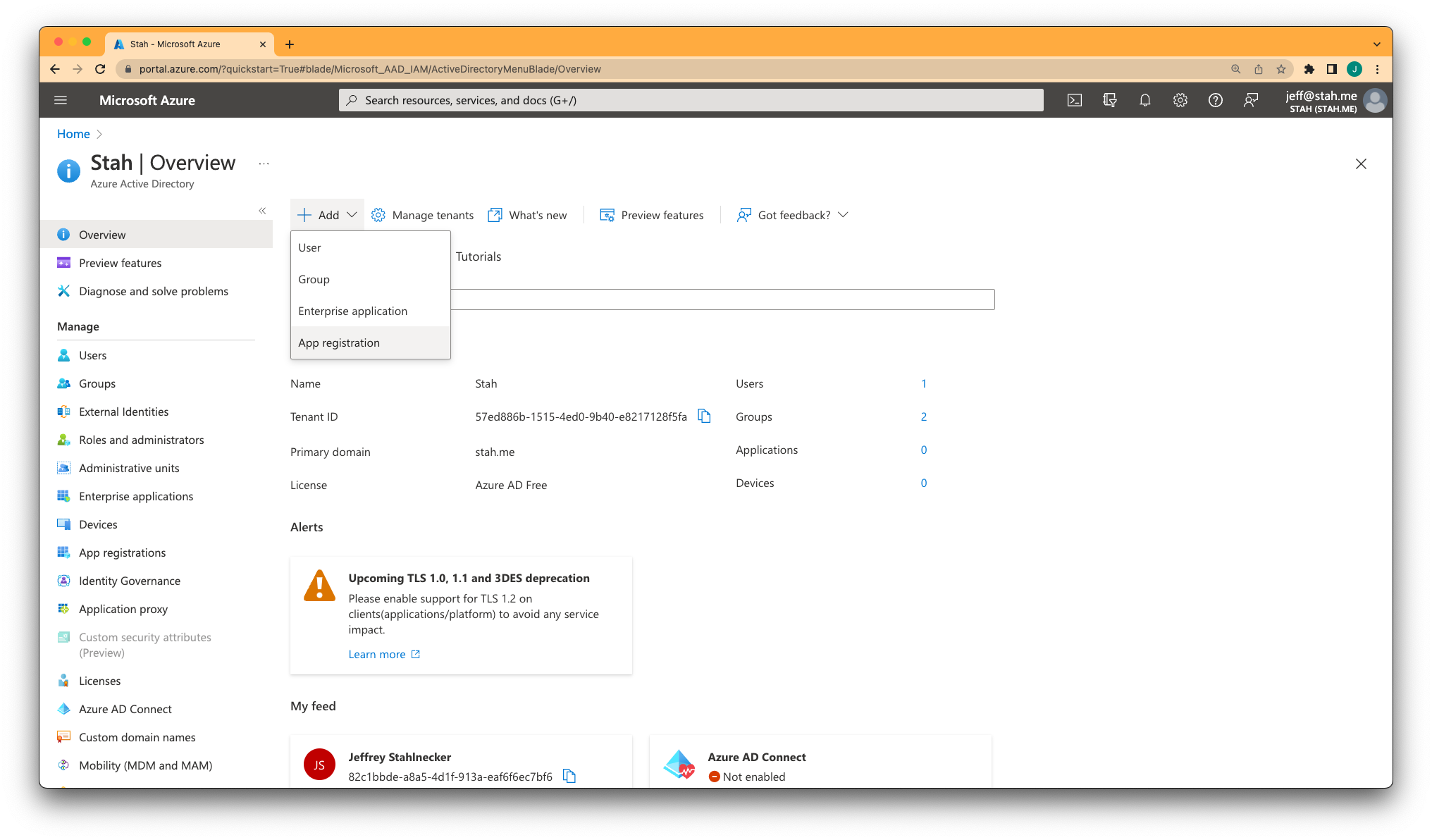

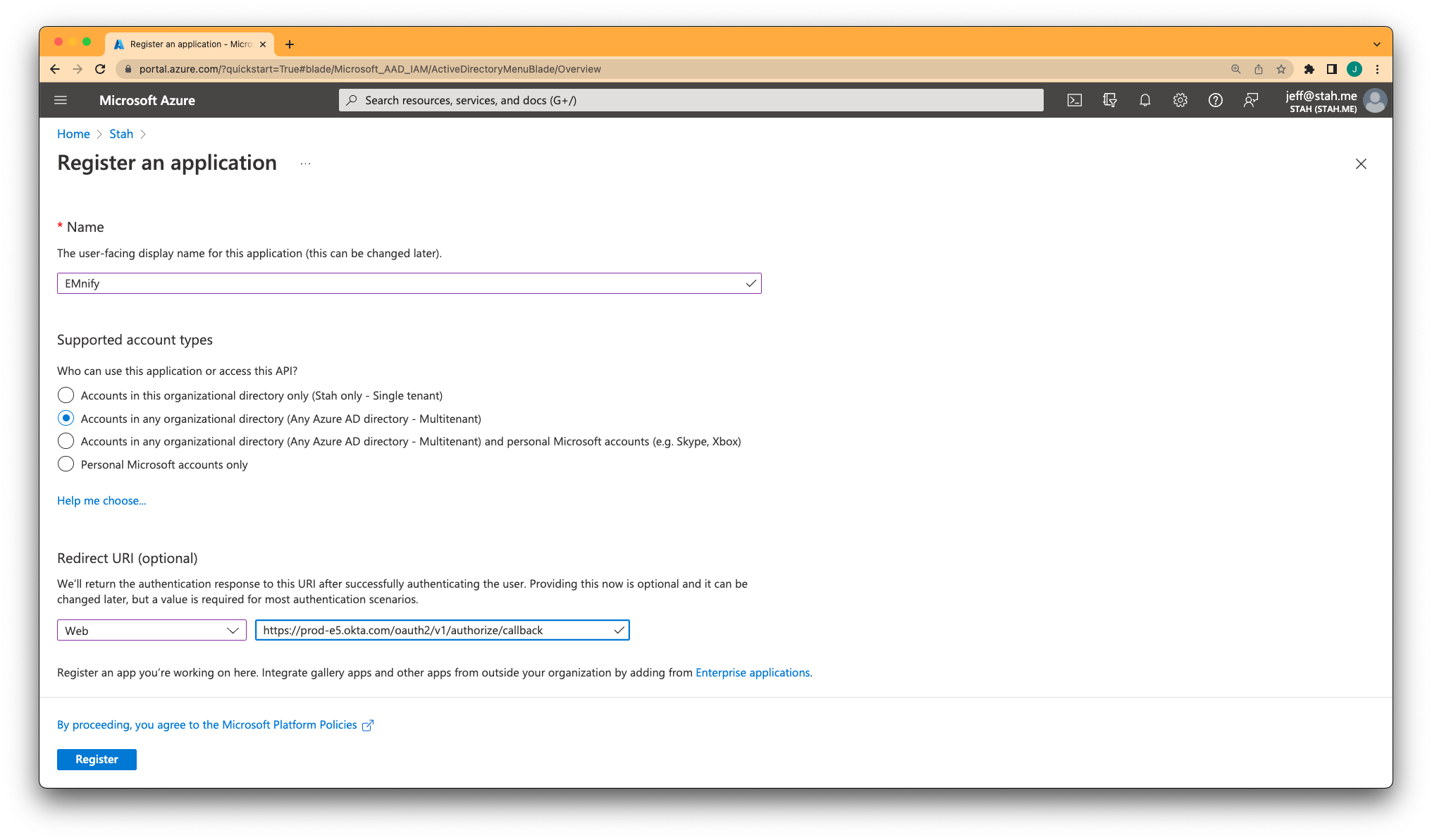

At the top of the page, click + Add and then App Registration. From there:

  • Give your app a Name (for example, "emnify").
  • The Supported Account Types should be Multitenant. This requests a consent screen on IDP verification in the Portal later.
  • Set the Redirect URI to type Web with the value: https://prod-e5.okta.com/oauth2/v1/authorize/callback

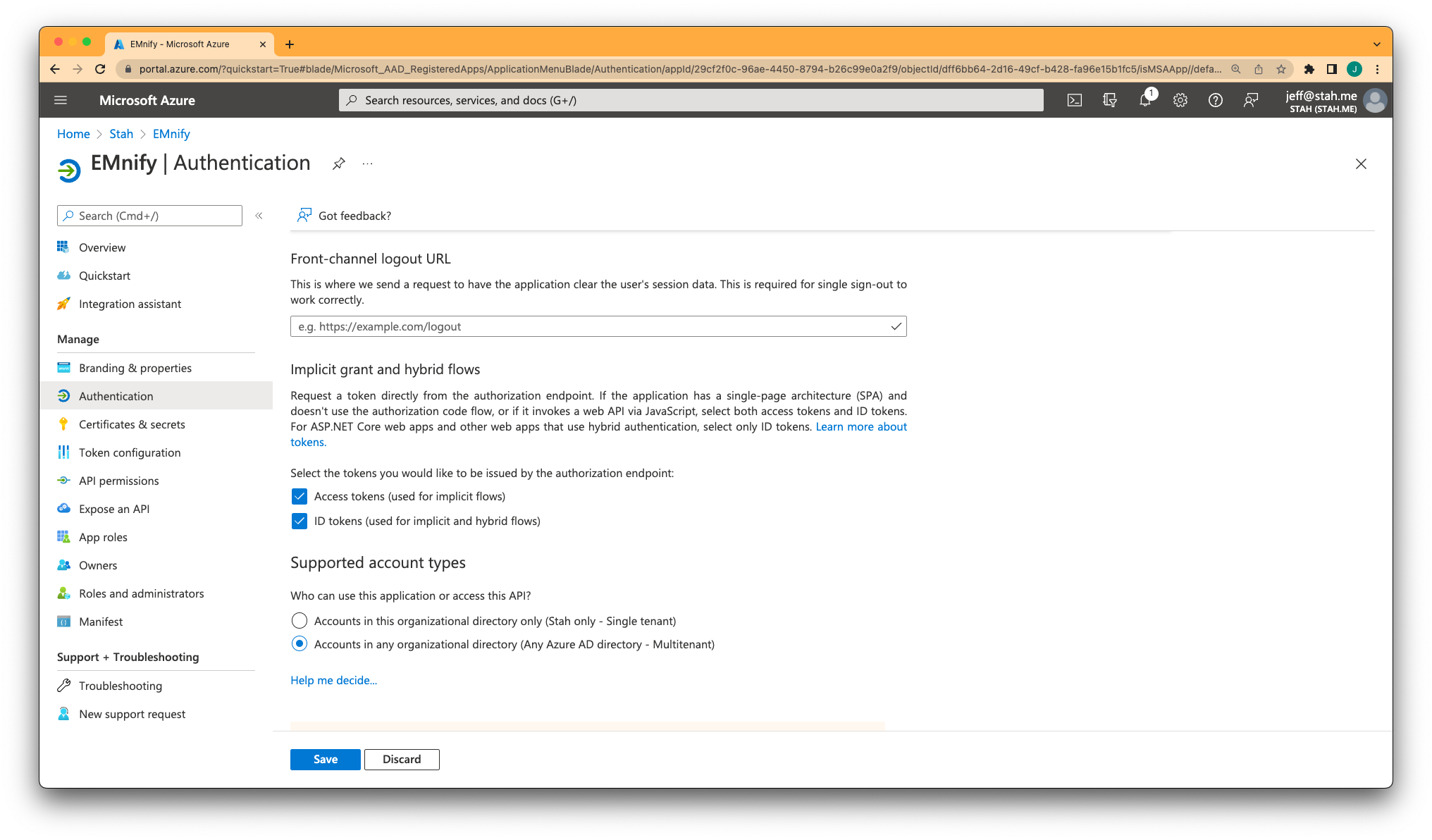

Navigate to Authentication in the left sidebar, and in the section Implicit grand and hybrid flows, enable Access tokens and ID tokens.

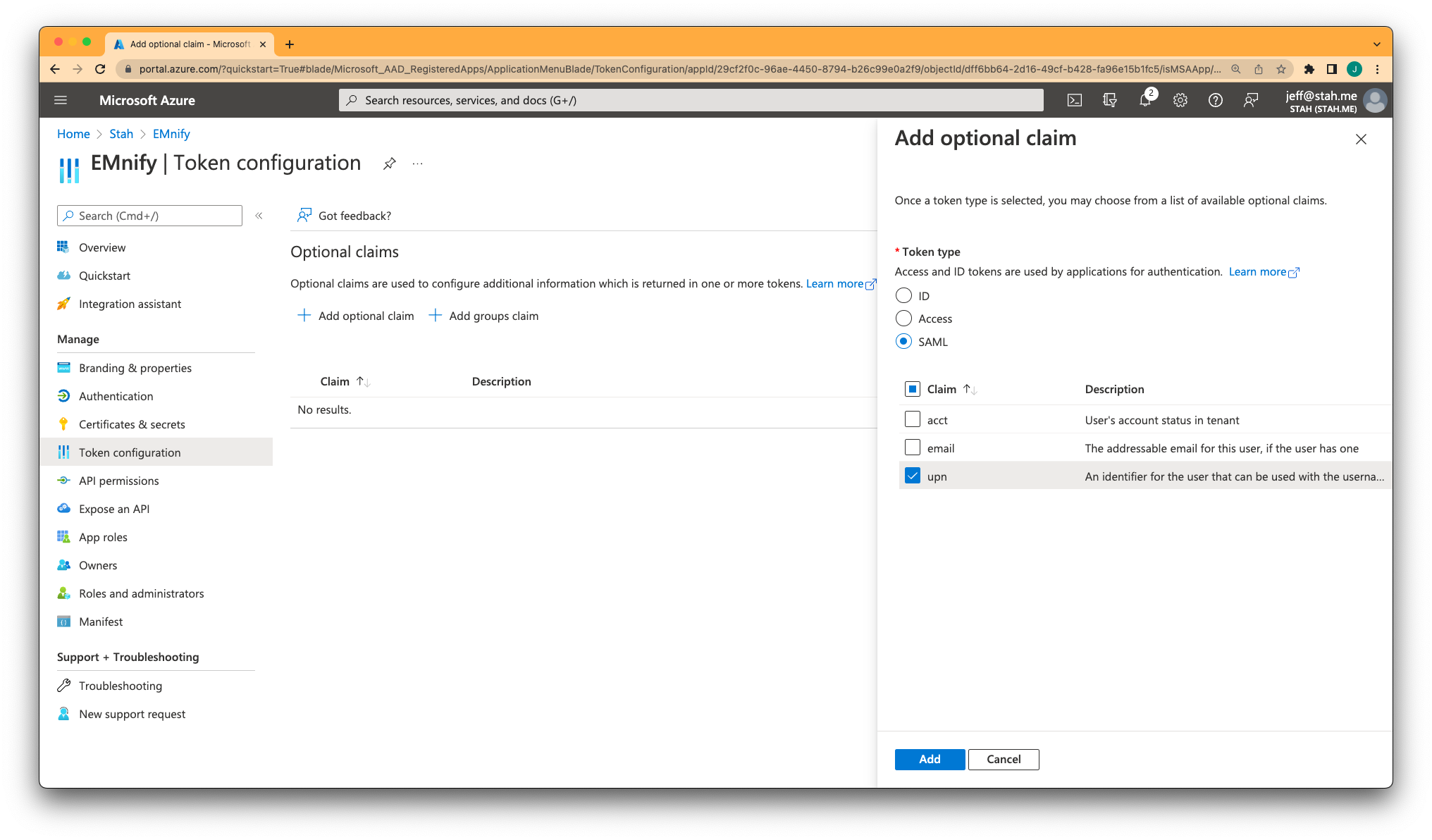

Go to Token configuration in the left sidebar, click Add optional claim, and under SAML, enable the upn claim. Leave the option Turn on the Microsoft Graph profile permission unchecked.

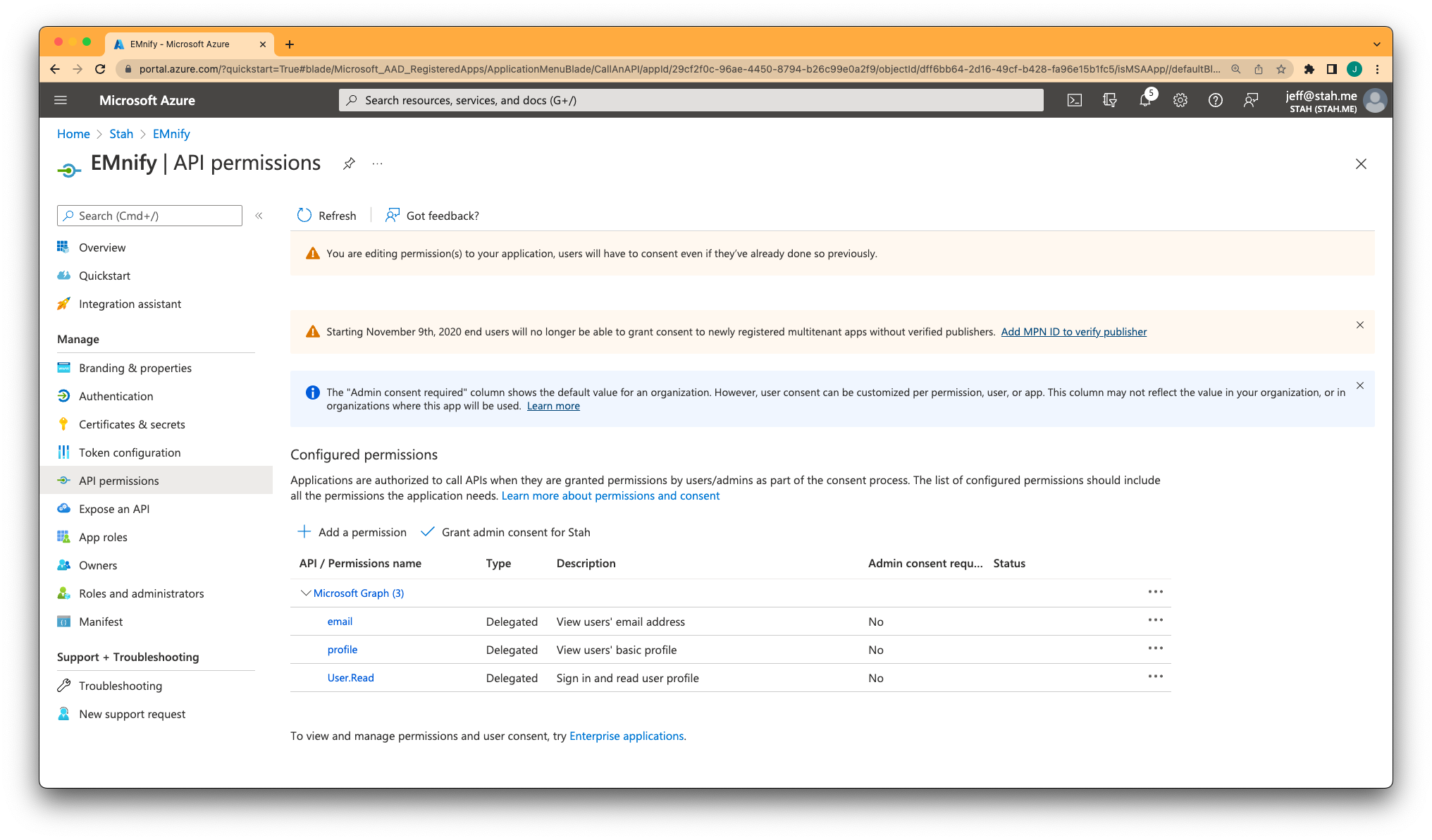

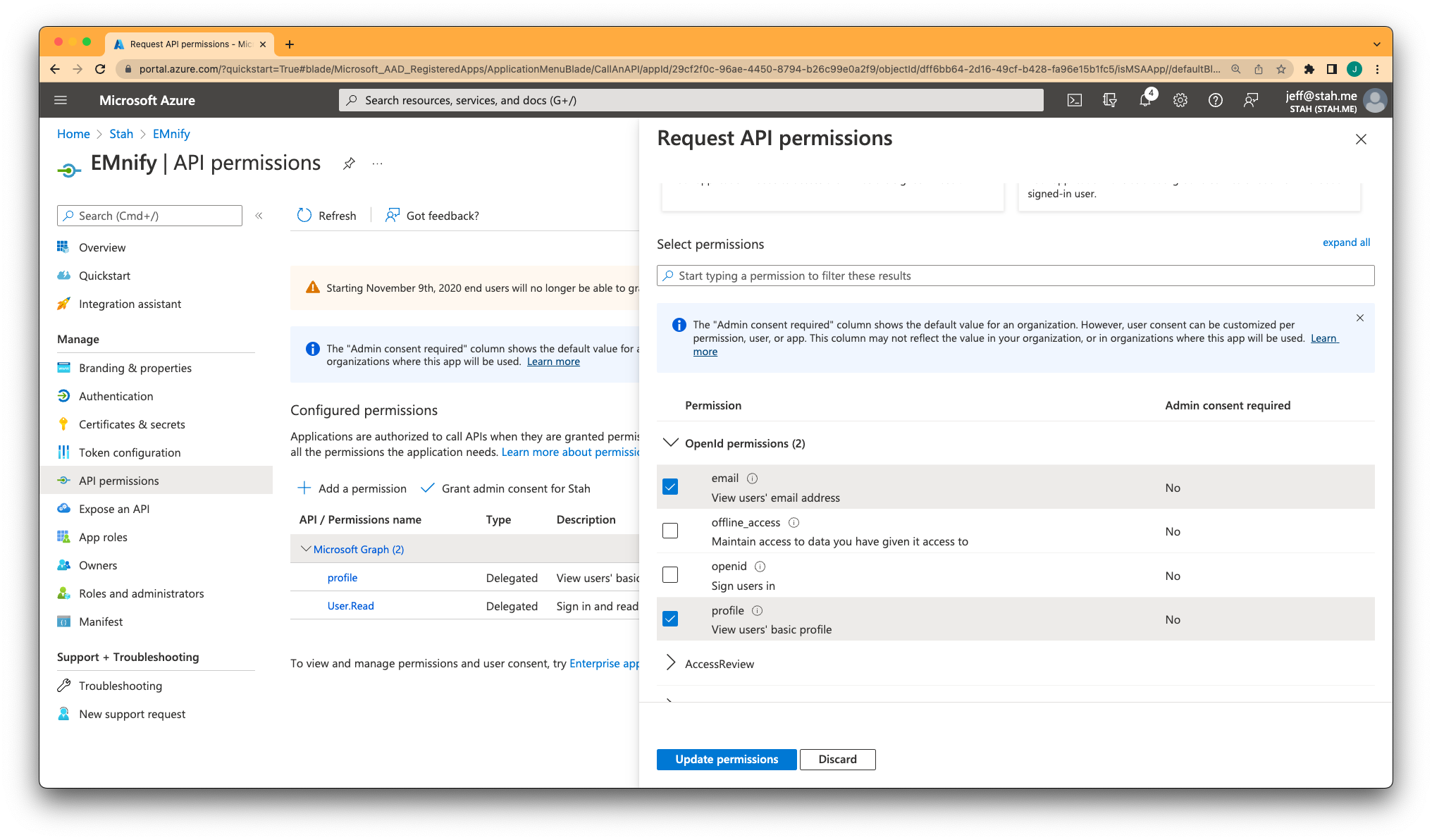

Head to API permissions in the left sidebar, click the existing permission entry Microsoft Graph (1) and confirm the email and profile OpenID permissions.

Your configuration should look like this:

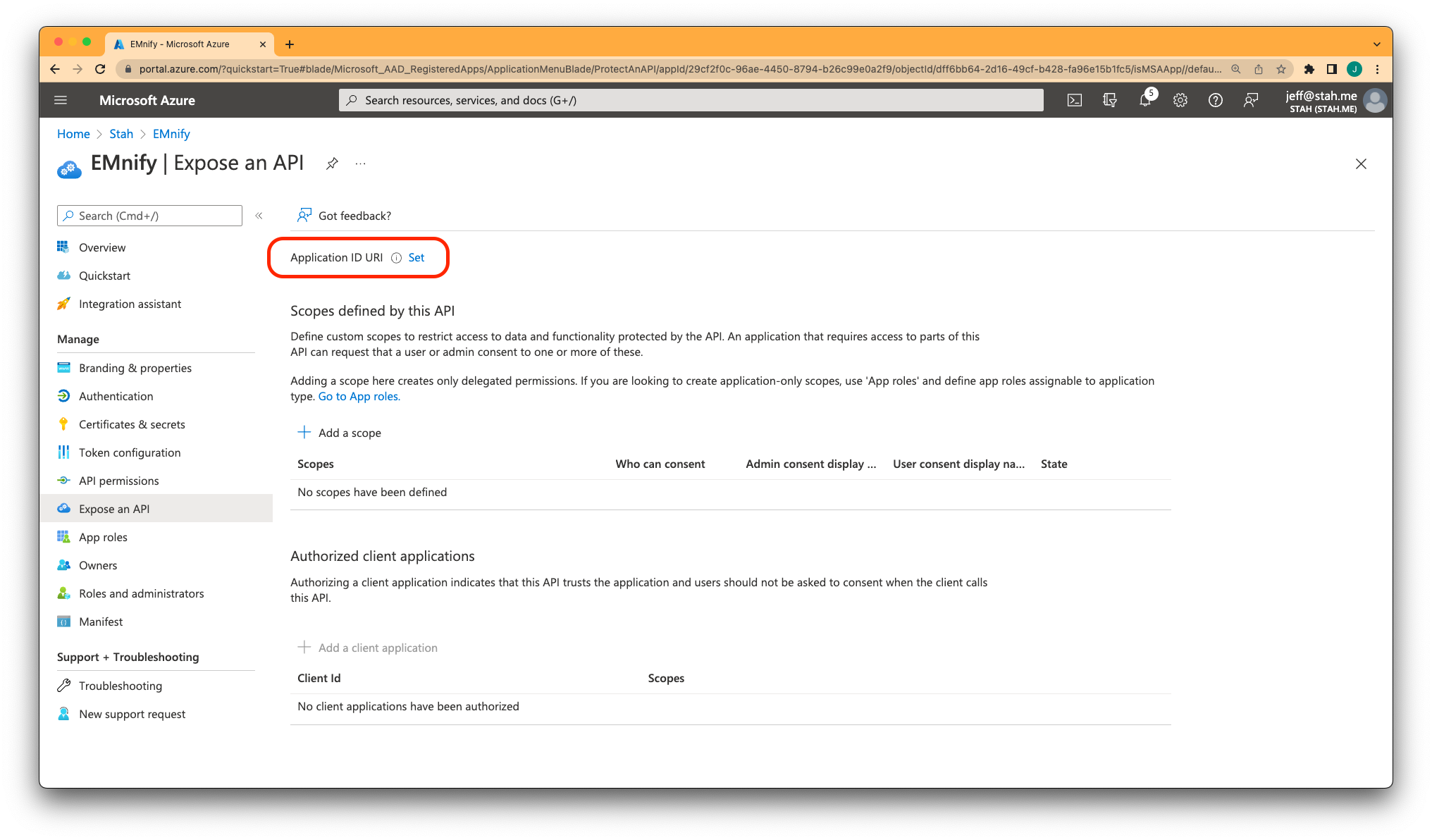

In the left sidebar, go to Expose an API, click Set, and then click Save.

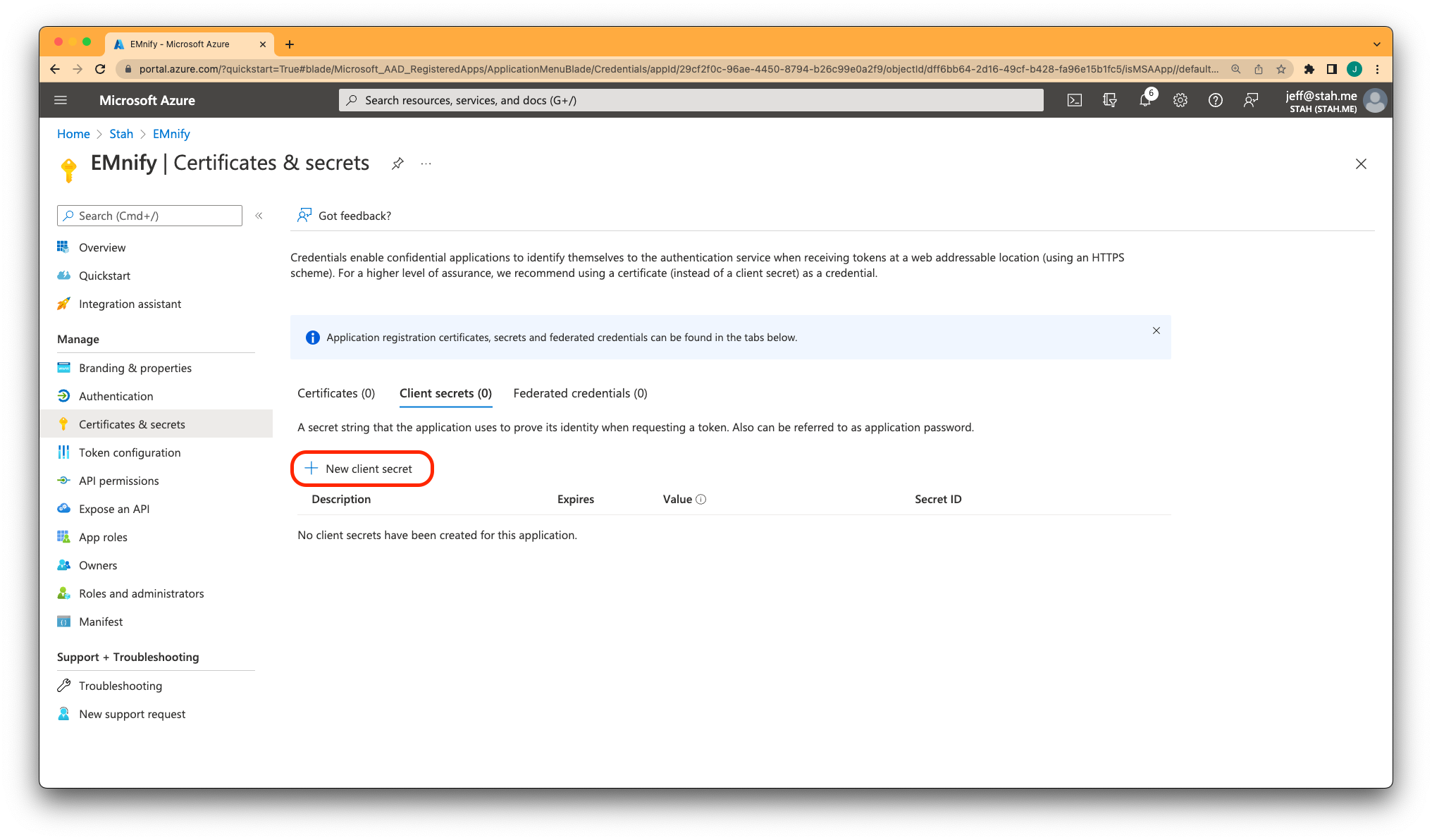

After navigating to Certificates & Secrets in the left sidebar, click New client secret.

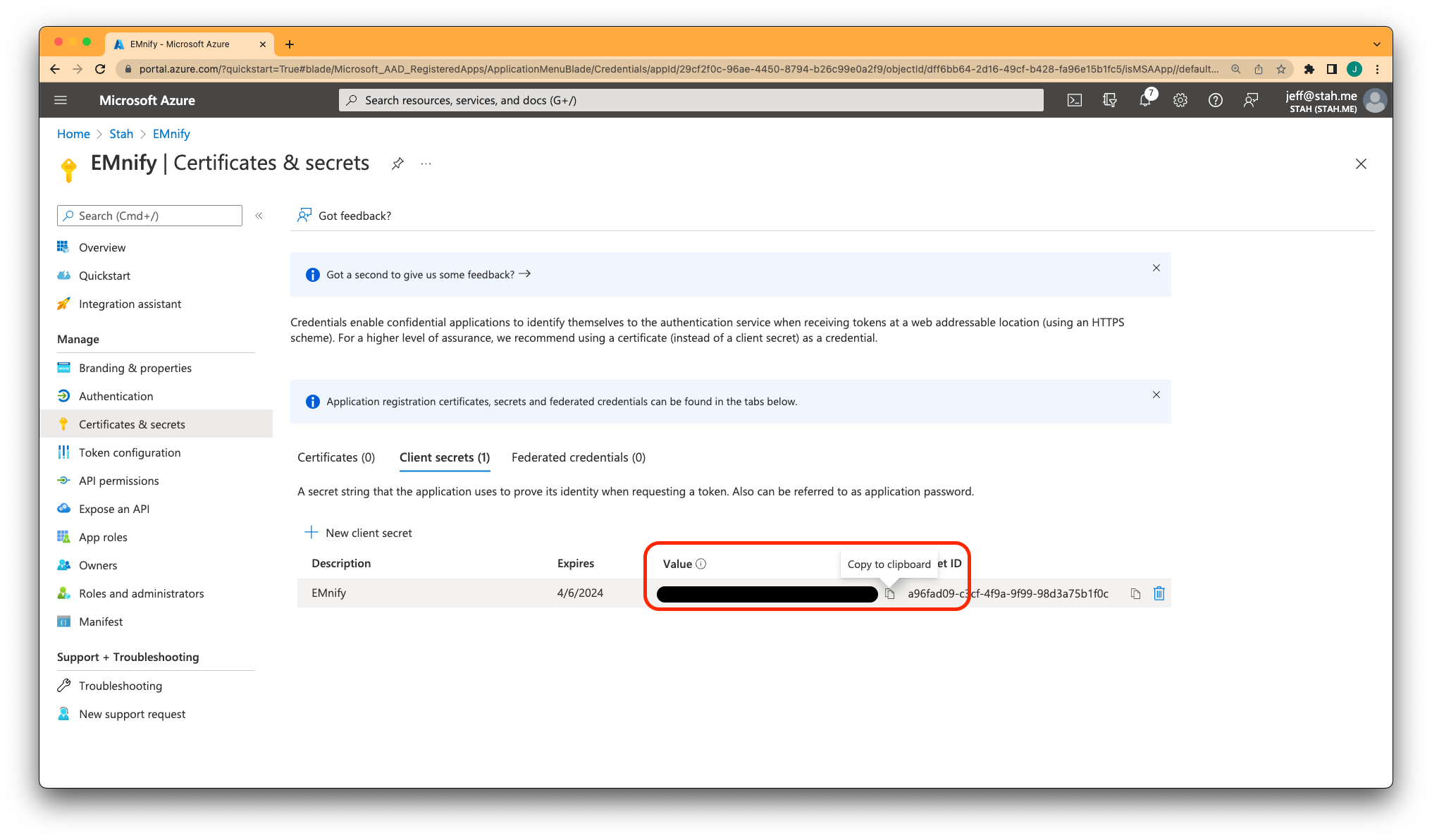

Copy the Value and save it to a secure location.

danger

This value won't be shown again.

Choose an expiration date and mark your calendar to generate and configure a new secret before it expires.

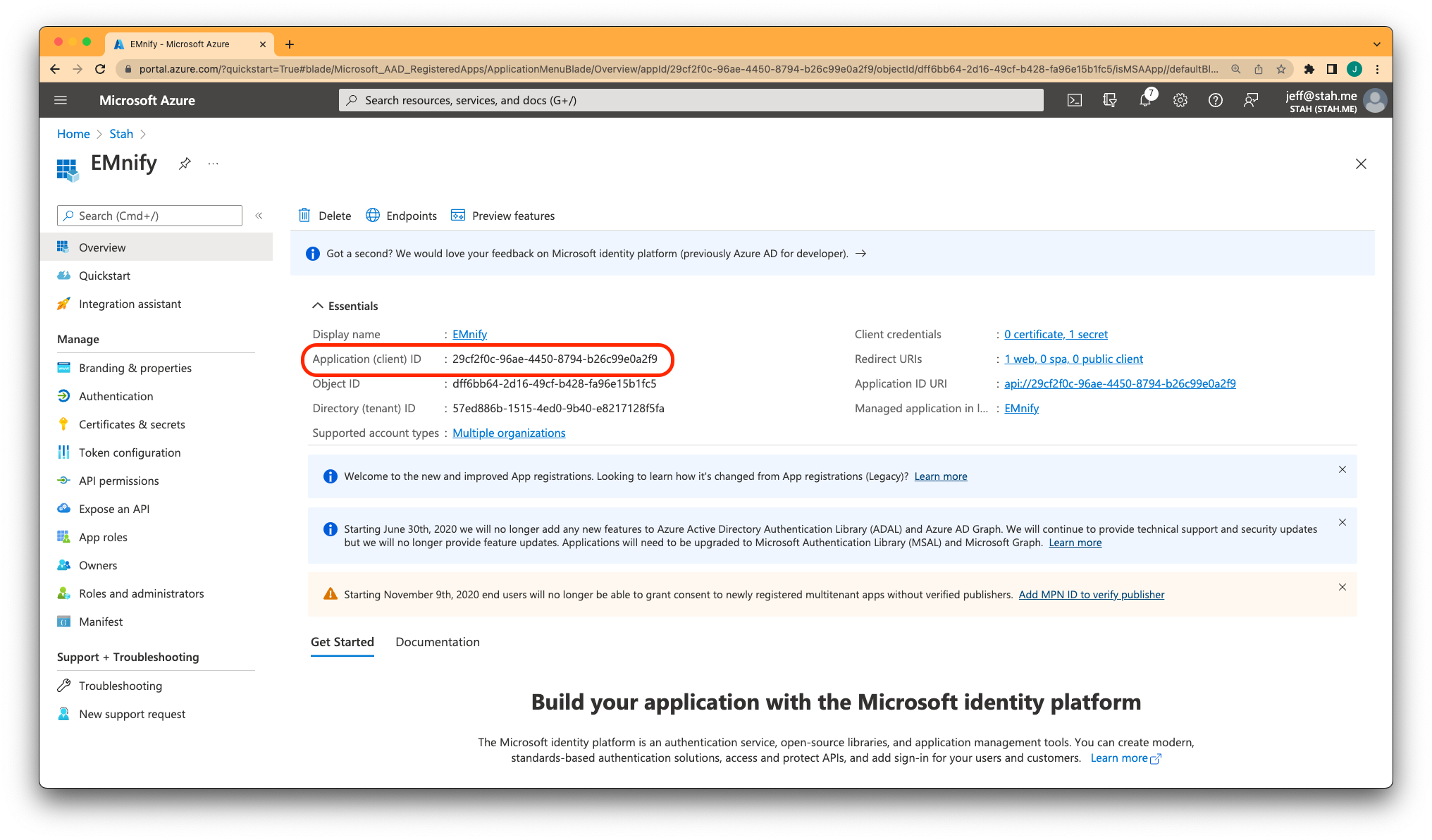

Navigate to Overview in the sidebar and copy the Application (client) ID to use later in the emnify Portal.

Configure the emnify Portal​

Log in to your emnify account, go to Organization Settings (building icon) in the top-level navigation, and click Single Sign-On.

Portal screenshot showing the Organization settings dropdown menu. Menu items from top to bottom, Organization Data, Employees, Subscription, Billing, Single Sign-On.

If you need SSO enabled for your account, contact support by selecting Upgrade. Otherwise, click Add under the Microsoft SSO provider.

Enter the Client ID and Client Secret with the values you copied earlier, then click Create and Activate.

The final step is to verify the provider. Click Verify Integration and follow the prompts.

caution

You must complete the final step and verify the provider to configure SSO.

tip

Refer to the Troubleshooting page if you encounter issues while setting up SSO.
